LIGHT 1
Dental worklight
LIGHT 1 is designed to meet the complex lighting requirements of everyday laboratory work. LIGHT 1 is equipped with innovative optical technology and provides unprecedented illumination of the work area. See more, work better. Every detail and every facet of dental work becomes visible. A dedicated ray tracing technology provides uniform light distribution, high average illuminance and brilliant color and surface reproduction.
Advantages
- Maximum precision and clear visualization of the finest color nuances thanks to outstanding color rendering quality (CRI of 97 with extended color matching of 14 colors).
- Uniform surface brightness with rectangular illumination (adapted to dental workbench) thanks to high work area luminance with high lumen value.
- Brilliant surface reproduction of dental objects thanks to homogeneous light distribution and high illuminance levels.
Details
- The special optical technology for uniform, glare-free illumination ensures fatigue-free, concentrated work.
- Optimum perspective viewing and display of surface textures thanks to a well-balanced combination of diffuse and directional light.

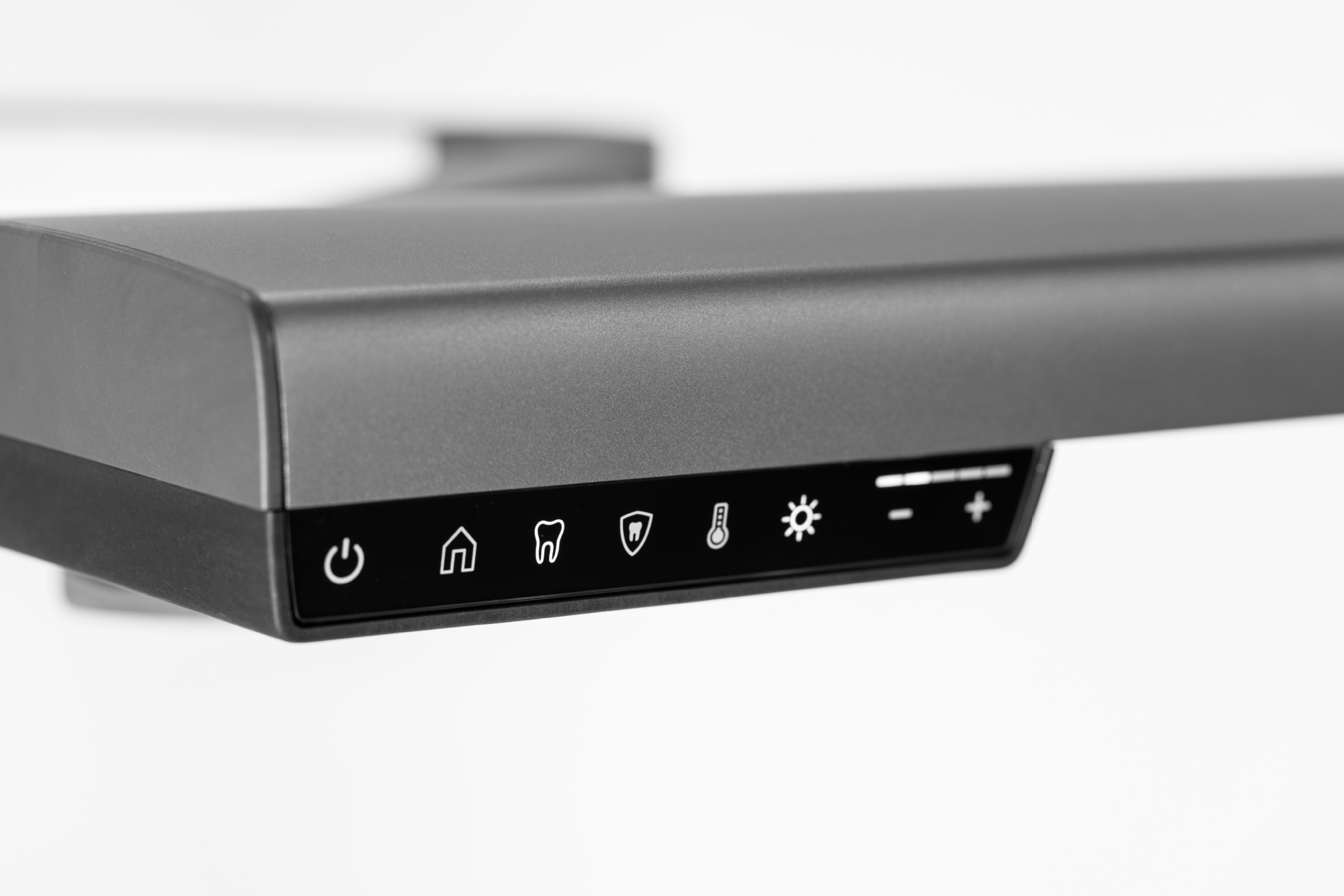

- Light modeling with easy-to-use modes for adapting illumination to different requirements (e. g. daylight scenario, blue light elimination).
- Comfortable and healthy working environment with 100 % flicker-free light.
LIGHT 1, 100-240V US/JP
Item number 25001600
Description:
Workbench light, table attachment, arm (left)
LIGHT 1, 100-240V | LIGHT 1, 100-240V | LIGHT 1, 100-240V US/JP | LIGHT 1, 100-240V US/JP | |
---|---|---|---|---|
Item number | 25000600 | 25000700 | 25001600 | 25001700 |
Dimensions min. (retracted) (W x H x D) | 645 x 515 x 235 mm 25.4 x 21.7 x 9.25 inch |
660 x 88 x 310 mm 26.0 x 3.5 x 12.2 inch |
645 x 515 x 235 mm 25.4 x 21.7 x 9.25 inch |
660 x 88 x 310 mm 26.0 x 3.5 x 12.2 inch |
Dimensions max. (extended) (W x H x D) | 685 x 750 x 660 mm | 660 x 88 x 515 mm | 685 x 750 x 660 mm | 660 x 88 x 515 mm |
Tolerance specification calibrated light / Intensity of lighting | ± 5 % | ± 5 % | ± 5 % | ± 5 % |
Tolerance specification calibrated light / Color temperature | ± 50 K | ± 50 K | ± 50 K | ± 50 K |
Color rendering index Ra / CRI | 97.5 | 97.5 | 97.5 | 97.5 |
Extended color rendering index Re/ CRIe | 96 | 96 | 96 | 96 |
Glare value UGR | 19 | 19 | 19 | 19 |
Dimensions max. (W x H x D) | 27.0 x 29.5 x 26.0 inch | 26.0 x 3.5 x 20.3 inch | 27.0 x 29.5 x 26.0 inch | 26.0 x 3.5 x 20.3 inch |
Permissible mains voltage | 100 - 240 V | 100 - 240 V | 100 - 240 V | 100 - 240 V |
Permissible mains frequency | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz |
Weight | 3.7 kg 8.16 lbs |
2.9 kg 6.39 lbs |
3.7 kg 8.16 lbs |
2.9 kg 6.39 lbs |
Power consumption | 53 W | 53 W | 53 W | 53 W |
Color temperature (level 1-5) | 3,500 - 6,000 K | 2,700 - 6,000 K | 3,500 - 6,000 K | 2,700 - 6,000 K |
Energy efficiency class of the light source provided | A+ | A+ | A+ | A+ |
Intensity of lighting (max., at 43 cm distance) | 13,000 lx | 13,000 lx | 13,000 lx | 13,000 lx |
Total luminous flux Φ total lumens | 3,500 lm | 3,500 lm | 3,500 lm | 3,500 lm |
Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm | 10,000 lx | 10,000 lx | 10,000 lx | 10,000 lx |
- Item number
- 25000600
- Dimensions min. (retracted) (W x H x D)
-
645 x 515 x 235 mm
25.4 x 21.7 x 9.25 inch - Dimensions max. (extended) (W x H x D)
- 685 x 750 x 660 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 27.0 x 29.5 x 26.0 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
3.7 kg
8.16 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 3,500 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
- Item number
- 25000700
- Dimensions min. (retracted) (W x H x D)
-
660 x 88 x 310 mm
26.0 x 3.5 x 12.2 inch - Dimensions max. (extended) (W x H x D)
- 660 x 88 x 515 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 26.0 x 3.5 x 20.3 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
2.9 kg
6.39 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 2,700 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
- Item number
- 25001600
- Dimensions min. (retracted) (W x H x D)
-
645 x 515 x 235 mm
25.4 x 21.7 x 9.25 inch - Dimensions max. (extended) (W x H x D)
- 685 x 750 x 660 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 27.0 x 29.5 x 26.0 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
3.7 kg
8.16 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 3,500 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
- Item number
- 25001700
- Dimensions min. (retracted) (W x H x D)
-
660 x 88 x 310 mm
26.0 x 3.5 x 12.2 inch - Dimensions max. (extended) (W x H x D)
- 660 x 88 x 515 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 26.0 x 3.5 x 20.3 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
2.9 kg
6.39 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 2,700 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
Technical data
LIGHT 1, 100-240V | LIGHT 1, 100-240V | LIGHT 1, 100-240V US/JP | LIGHT 1, 100-240V US/JP | |
---|---|---|---|---|
Item number | 25000600 | 25000700 | 25001600 | 25001700 |
Dimensions min. (retracted) (W x H x D) | 645 x 515 x 235 mm 25.4 x 21.7 x 9.25 inch |
660 x 88 x 310 mm 26.0 x 3.5 x 12.2 inch |
645 x 515 x 235 mm 25.4 x 21.7 x 9.25 inch |
660 x 88 x 310 mm 26.0 x 3.5 x 12.2 inch |
Dimensions max. (extended) (W x H x D) | 685 x 750 x 660 mm | 660 x 88 x 515 mm | 685 x 750 x 660 mm | 660 x 88 x 515 mm |
Tolerance specification calibrated light / Intensity of lighting | ± 5 % | ± 5 % | ± 5 % | ± 5 % |
Tolerance specification calibrated light / Color temperature | ± 50 K | ± 50 K | ± 50 K | ± 50 K |
Color rendering index Ra / CRI | 97.5 | 97.5 | 97.5 | 97.5 |
Extended color rendering index Re/ CRIe | 96 | 96 | 96 | 96 |
Glare value UGR | 19 | 19 | 19 | 19 |
Dimensions max. (W x H x D) | 27.0 x 29.5 x 26.0 inch | 26.0 x 3.5 x 20.3 inch | 27.0 x 29.5 x 26.0 inch | 26.0 x 3.5 x 20.3 inch |
Permissible mains voltage | 100 - 240 V | 100 - 240 V | 100 - 240 V | 100 - 240 V |
Permissible mains frequency | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz | 50 - 60 Hz |
Weight | 3.7 kg 8.16 lbs |
2.9 kg 6.39 lbs |
3.7 kg 8.16 lbs |
2.9 kg 6.39 lbs |
Power consumption | 53 W | 53 W | 53 W | 53 W |
Color temperature (level 1-5) | 3,500 - 6,000 K | 2,700 - 6,000 K | 3,500 - 6,000 K | 2,700 - 6,000 K |
Energy efficiency class of the light source provided | A+ | A+ | A+ | A+ |
Intensity of lighting (max., at 43 cm distance) | 13,000 lx | 13,000 lx | 13,000 lx | 13,000 lx |
Total luminous flux Φ total lumens | 3,500 lm | 3,500 lm | 3,500 lm | 3,500 lm |
Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm | 10,000 lx | 10,000 lx | 10,000 lx | 10,000 lx |
- Item number
- 25000600
- Dimensions min. (retracted) (W x H x D)
-
645 x 515 x 235 mm
25.4 x 21.7 x 9.25 inch - Dimensions max. (extended) (W x H x D)
- 685 x 750 x 660 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 27.0 x 29.5 x 26.0 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
3.7 kg
8.16 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 3,500 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
- Item number
- 25000700
- Dimensions min. (retracted) (W x H x D)
-
660 x 88 x 310 mm
26.0 x 3.5 x 12.2 inch - Dimensions max. (extended) (W x H x D)
- 660 x 88 x 515 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 26.0 x 3.5 x 20.3 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
2.9 kg
6.39 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 2,700 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
- Item number
- 25001600
- Dimensions min. (retracted) (W x H x D)
-
645 x 515 x 235 mm
25.4 x 21.7 x 9.25 inch - Dimensions max. (extended) (W x H x D)
- 685 x 750 x 660 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 27.0 x 29.5 x 26.0 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
3.7 kg
8.16 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 3,500 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
- Item number
- 25001700
- Dimensions min. (retracted) (W x H x D)
-
660 x 88 x 310 mm
26.0 x 3.5 x 12.2 inch - Dimensions max. (extended) (W x H x D)
- 660 x 88 x 515 mm
- Tolerance specification calibrated light / Intensity of lighting
- ± 5 %
- Tolerance specification calibrated light / Color temperature
- ± 50 K
- Color rendering index Ra / CRI
- 97.5
- Extended color rendering index Re/ CRIe
- 96
- Glare value UGR
- 19
- Dimensions max. (W x H x D)
- 26.0 x 3.5 x 20.3 inch
- Permissible mains voltage
- 100 - 240 V
- Permissible mains frequency
- 50 - 60 Hz
- Weight
-
2.9 kg
6.39 lbs - Power consumption
- 53 W
- Color temperature (level 1-5)
- 2,700 - 6,000 K
- Energy efficiency class of the light source provided
- A+
- Intensity of lighting (max., at 43 cm distance)
- 13,000 lx
- Total luminous flux Φ total lumens
- 3,500 lm
- Rectangular light distribution / uniform lighting level with medium illuminance and 40 x 30 cm
- 10,000 lx
Table clamp LIGHT 1
Item number 25000510
Description:
18–74 mm (0.71–2.92")
Scope of delivery:
1 piece
1 piece
LIGHT 1, 100-240VItem number 25000600 |
View spare parts list |
LIGHT 1, 100-240VItem number 25000700 |
View spare parts list |
LIGHT 1, 100-240V US/JPItem number 25001600 |
View spare parts list |
LIGHT 1, 100-240V US/JPItem number 25001700 |
View spare parts list |
