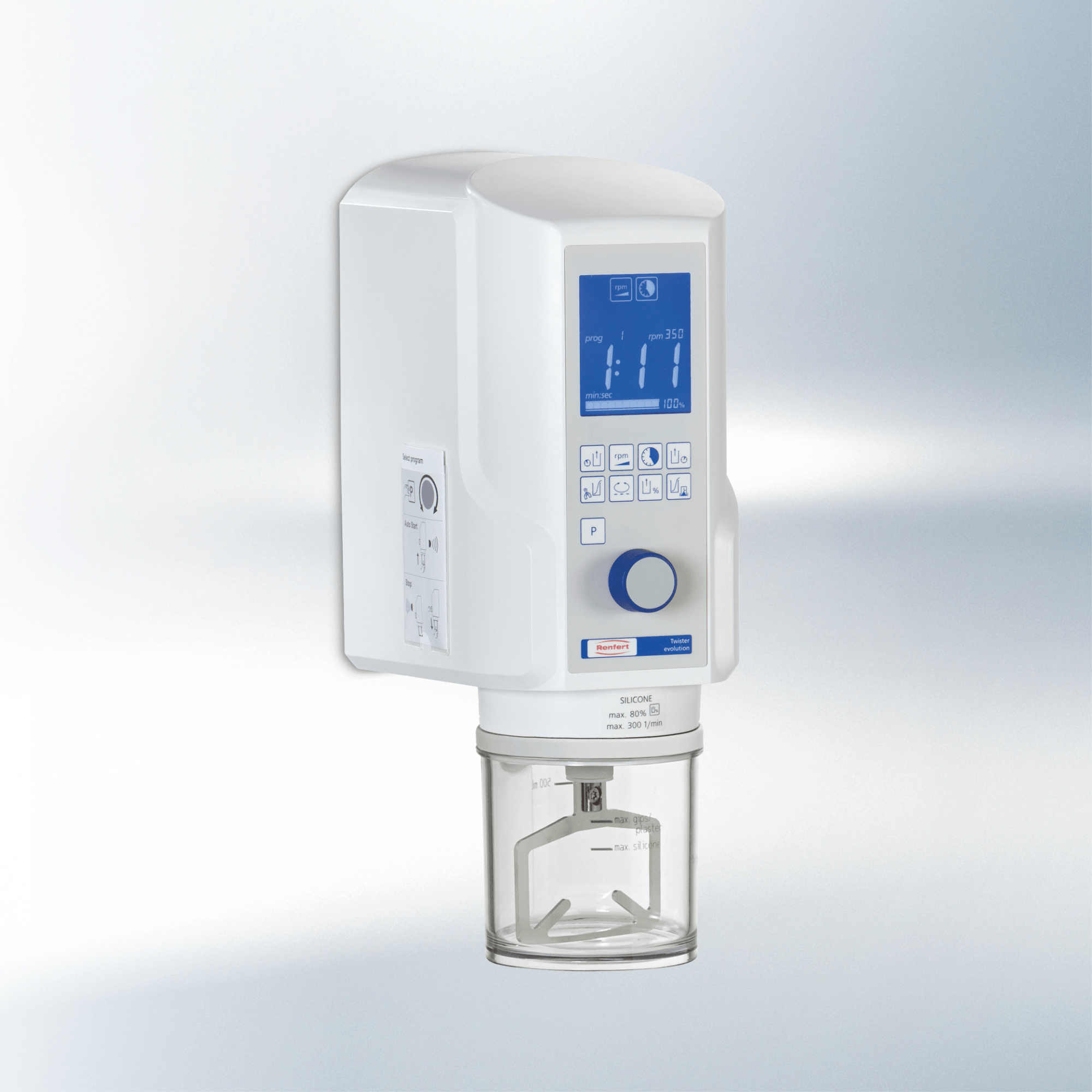

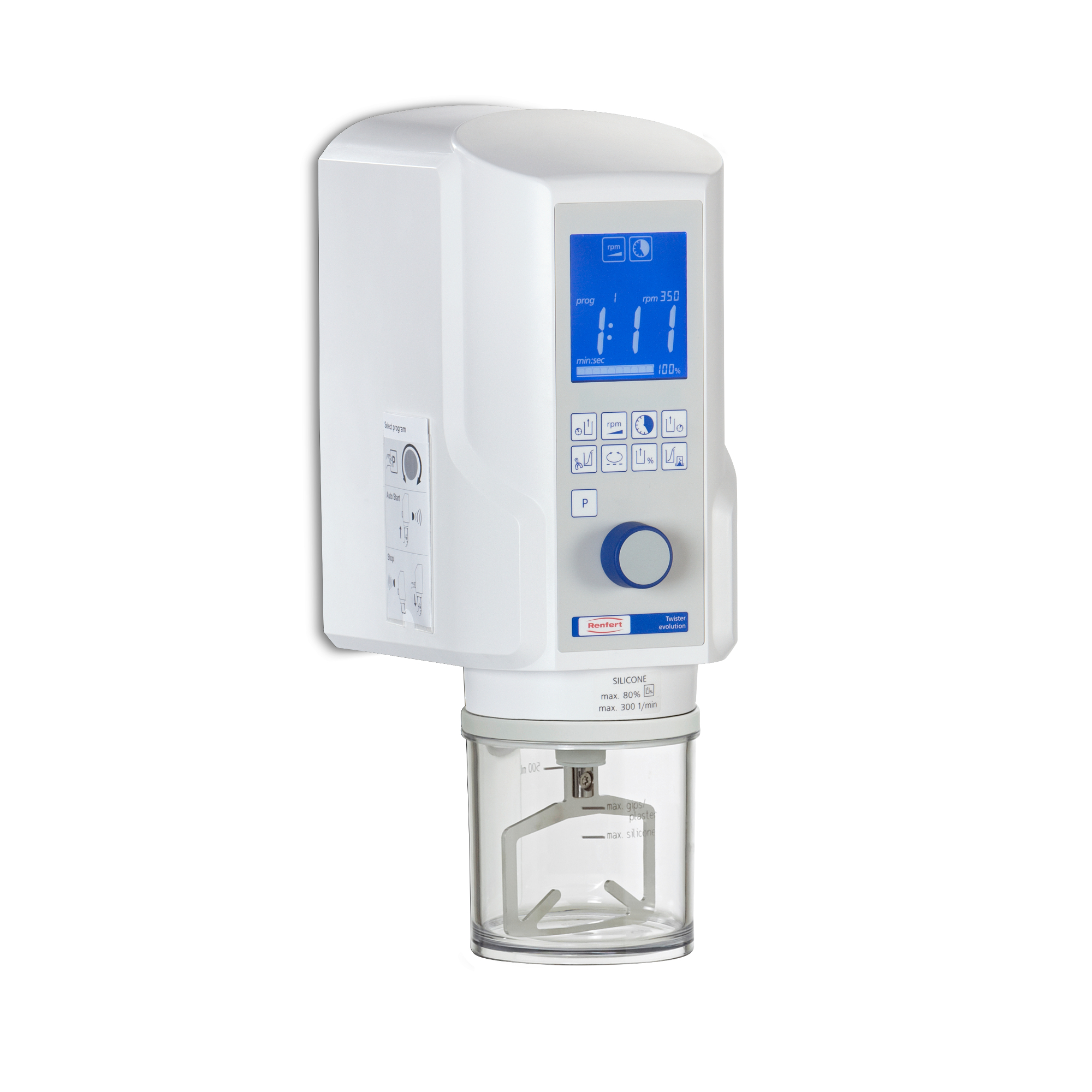

Twister evolution

Vacuum mixing unit

High speed, vacuum mixing unit, diaphragm pump for the vacuum and eight programmable mixing functions.

Advantages

  • Reliable processing of large amounts due to high speed.
  • Can be used flexibly for plaster and investment materials, duplicating materials and alginate impression materials.
  • Reduction of bubbles thanks to a vacuum that can be regulated in increments between 70% and 100%.

Details

  • Programmable: Twister evolution has more than 100 custom programmable mixing programs.
  • Prespatulation: The prespatulation function guarantees consistent results, regardless of whether plaster or investment material is used. In addition, the mixing time is reduced and inhalation of dangerous dust prevented.
  • Pre vacuum: Undesired reaction gases from investments are extracted by the prevacuum function before the main mixing time.
  • Main mixing cycle: The powerful motors of the Twister evolution effortlessly maintain the set mixing speed with any material, filling level and bowl size.
  • Reverse rotation: Dry agglomerates are broken up by the change of the paddle direction to ensure better wetting of the powder.
  • Post vacuum: The post vacuum of the Twister evolution reduces gas inclusions, which form later on the surface of the mixture.

Twister evolution, 220-240 V

Item number 18280000
Scope of delivery:
incl. 500 ml bowl and mixing paddle

Twister evolution, 100-120 V

Item number 18281000
Scope of delivery:
incl. 500 ml bowl and mixing paddle
Twister evolution, 220-240 V Twister evolution, 100-120 V
Item number 18280000 18281000
Permissible mains voltage 100 - 240 V 100 - 240 V
Permissible mains frequency 50 - 60 Hz 50 - 60 Hz
Weight (without bowl) 5,2 kg
11,5 lbs
5,2 kg
11,5 lbs
Dimensions (W x H x D) (wall unit) 152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
Power consumption 180 VA 180 VA
Vacuum pump capacity 16 l/min
0,56 cfm
16 l/min
0,56 cfm
Max. vacuum -890 mbar
-12,9 psi
-890 mbar
-12,9 psi
Bowl pressure abs. 80 mbar
1,16 psi
80 mbar
1,16 psi
Vacuum reduction 70 - 100 % 70 - 100 %
Rotational speed 100 - 450 rpm 100 - 450 rpm
Vacuum build-up Membrane pump Membrane pump
Programmable 1 1
Item number
18280000
Permissible mains voltage
100 - 240 V
Permissible mains frequency
50 - 60 Hz
Weight (without bowl)
5,2 kg
11,5 lbs
Dimensions (W x H x D) (wall unit)
152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
Power consumption
180 VA
Vacuum pump capacity
16 l/min
0,56 cfm
Max. vacuum
-890 mbar
-12,9 psi
Bowl pressure abs.
80 mbar
1,16 psi
Vacuum reduction
70 - 100 %
Rotational speed
100 - 450 rpm
Vacuum build-up
Membrane pump
Programmable
1
Item number
18281000
Permissible mains voltage
100 - 240 V
Permissible mains frequency
50 - 60 Hz
Weight (without bowl)
5,2 kg
11,5 lbs
Dimensions (W x H x D) (wall unit)
152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
Power consumption
180 VA
Vacuum pump capacity
16 l/min
0,56 cfm
Max. vacuum
-890 mbar
-12,9 psi
Bowl pressure abs.
80 mbar
1,16 psi
Vacuum reduction
70 - 100 %
Rotational speed
100 - 450 rpm
Vacuum build-up
Membrane pump
Programmable
1

Technical data

Twister evolution, 220-240 V Twister evolution, 100-120 V
Item number 18280000 18281000
Permissible mains voltage 100 - 240 V 100 - 240 V
Permissible mains frequency 50 - 60 Hz 50 - 60 Hz
Weight (without bowl) 5,2 kg
11,5 lbs
5,2 kg
11,5 lbs
Dimensions (W x H x D) (wall unit) 152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
Power consumption 180 VA 180 VA
Vacuum pump capacity 16 l/min
0,56 cfm
16 l/min
0,56 cfm
Max. vacuum -890 mbar
-12,9 psi
-890 mbar
-12,9 psi
Bowl pressure abs. 80 mbar
1,16 psi
80 mbar
1,16 psi
Vacuum reduction 70 - 100 % 70 - 100 %
Rotational speed 100 - 450 rpm 100 - 450 rpm
Vacuum build-up Membrane pump Membrane pump
Programmable 1 1
Item number
18280000
Permissible mains voltage
100 - 240 V
Permissible mains frequency
50 - 60 Hz
Weight (without bowl)
5,2 kg
11,5 lbs
Dimensions (W x H x D) (wall unit)
152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
Power consumption
180 VA
Vacuum pump capacity
16 l/min
0,56 cfm
Max. vacuum
-890 mbar
-12,9 psi
Bowl pressure abs.
80 mbar
1,16 psi
Vacuum reduction
70 - 100 %
Rotational speed
100 - 450 rpm
Vacuum build-up
Membrane pump
Programmable
1
Item number
18281000
Permissible mains voltage
100 - 240 V
Permissible mains frequency
50 - 60 Hz
Weight (without bowl)
5,2 kg
11,5 lbs
Dimensions (W x H x D) (wall unit)
152 x 285 x 235 mm
6.0 x 11.2 x 9.3"
Power consumption
180 VA
Vacuum pump capacity
16 l/min
0,56 cfm
Max. vacuum
-890 mbar
-12,9 psi
Bowl pressure abs.
80 mbar
1,16 psi
Vacuum reduction
70 - 100 %
Rotational speed
100 - 450 rpm
Vacuum build-up
Membrane pump
Programmable
1

Mixing bowl incl. paddle, 65 ml

Item number 18206500
Description:

Well-designed paddle geometry for optimal, thorough mixing. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.

Scope of delivery:
1 piece incl. paddle, 65 ml

Mixing bowl incl. paddle, 200 ml

Item number 18200200
Description:

Well-designed paddle geometry for optimal, thorough mixing. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.

Scope of delivery:
1 piece incl. paddle, 200 ml

Mixing bowl, 200 ml

Item number 18200220
Description:

Bowl made from high-strength polycarbonate. Marking indicates maximum filling capacity.

Scope of delivery:
1 piece

Mixing bowl incl. paddle, 500 ml

Item number 18200500
Description:

Well-designed paddle geometry for optimal, thorough mixing. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.

Scope of delivery:
1 piece incl. paddle, 500 ml

Mixing bowl, 500 ml

Item number 18200520
Description:

Bowl made from high-strength polycarbonate. Marking indicates maximum filling capacity.

Scope of delivery:
1 piece

Mixing bowl incl. paddle, 700 ml

Item number 18200700
Description:

Well-designed paddle geometry for optimal, thorough mixing. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.

Scope of delivery:
1 piece incl. paddle, 700 ml

Mixing bowl incl. paddle, 1.000 ml

Item number 18201001
Description:

Well-designed paddle geometry for optimal, thorough mixing. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.

Scope of delivery:
1 piece incl. paddle, 1000 ml

Alginate mixing bowl, incl. paddle, 500 ml

Item number 18230500
Description:

Specially designed for the requirements of alginates. Bubble-free material thanks to the specially contoured mixing paddle for alginate material. The special surface coating ensures easy cleaning.

Scope of delivery:
1 piece incl. paddle, 500 ml

Alginate mixing bowl, 500 ml

Item number 18230520
Scope of delivery:
1 piece

Alginate mixing paddle, 500 ml

Item number 18230510
Scope of delivery:
1 piece

Stand

Item number 18210102
Description:

This stand has been specially designed for all Twister versions. Converts your Twister to a bench unit. Secure assembly in only a few steps. Flexibility and ergonomics.

Scope of delivery:
1 piece

Mixing spatula

Item number 18210200
Description:

The mixing spatula for all bowls in the Twister range provides the optimum prespatulation tool, which is also used for scooping the mixed material completely out of the bowl. Rounded edges protect the bowl. Length and stability also enable mixing of large quantities of material.

Scope of delivery:
1 piece

Twister evolution, 220-240 V

Item number 18280000

View spare parts list

Twister evolution, 100-120 V

Item number 18281000

View spare parts list

Twister evolution, 230 V

Item number 18220000

View spare parts list

Twister evolution, 120 V

Item number 18221000

View spare parts list

Twister evolution, 100 V

Item number 18222000

View spare parts list

Twister evolution pro, 230 V

Item number 18250000

View spare parts list

Twister evolution pro, 120 V

Item number 18251000

View spare parts list
  • FAQ

    Twister evolution / Twister evolution venturi 182xx000
